EP Conveyor Belts Strength N/mm 600/900/1200/1500 for Industrial Material Handling

Name: EP Conveyor Belts Strength Nmm 60090012001500 for Industrial Material Handling
Brand: sinoconve
Price: 20.00 USD

EP Conveyor Belts Strength N/mm 600/900/1200/1500 for Industrial Material Handling Manufactures

Place of Origin : Zhejiang, China

Brand Name : sinoconve

Processing Service : Moulding, Cutting

Description : EP conveyor belts

Fabric structure warp : polyester

Fabric structure weft : polyamid

Fabric specs : EP300

Ply thickness : 1.45mm/ply

Strength(N/mm) : 600/900/1200/1500

Cover thickness upper : 1.5-12

Cover thickness upper lower : 0-4.5

Belt width : 500-2500mm

Length : 50-500m/roll

Packaging Details : --- Maximum 500m per roll for rubber EP conveyor belts
--- Cassette package is available for abrasion resistant conveyor belts
--- One 20" container can load 6--8 rolls DIN-Y conveyor belts
--- One 40" container can load 8--10 rolls s

Port : Ningbo/Shanghai

MOQ : 50 meters

Price : $20.00/meters >=50 meters

Contact Now

Product Description

EP Conveyor Belts Strength N/mm 600/900/1200/1500 for Industrial Material Handling

SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.

Property

-- High strength

-- High resistant to abrasion

-- Low elongation

-- Resistant to impact

-- Suitable for long distance,large loading capacity and high speed transportation

Manufacturing standards

GB/T 7984

DIN 22102

JISK 6322

AS 1332-2000

SANS 1173:2005

BS 490

Specification

Cover Rubber grade	8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA	DIN-X,Y,W RMA-1,RMA-2 N17,M24
Belt width (mm)	500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500	18",20",24",30",36",40",42" 48",60",72",78",86",94"
Tensile strength	EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6	330PIW, 440PIW
Top+Bottom thickness	3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,	3/16"+1/16", 1/4"+1/16"
Belt thickness	3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length	10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type	moulded(sealed) edge or cut edge

Application

Conveyor belt fastener

140E,190E, 1.5" 2",2.5"

packed in carton box

Conveyor belt vulcanizing machine

Suitable for belt width upto 2600mm

Suitable for both fabric and steel cord belt

Chevron V conveyor belt

Closed V, Open V type

C5,C10,C15,C20,C25

Sidewall conveyor belt

EP400/3,EP500/4,EP630/3

Sidewall height: from 40mm to 400mm

Cleat height: from 35m to 350mm

MOQ:5m

High quality wrapped V belt

O,Z,M,A,B,C,D,E

SPZ,SPA,SPB,SPC,

3V,5V,8V,3L,4L,5L

MOQ: 50pcs

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC

AX10X,AV13X,AV15X,AV17X,AV22X

3VX,5VX,8VX

MOQ:50pcs

Quality control

Step 1: Raw material inspection

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound

EP fabric test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

Length and surface inspection

Thickness inspection

WIdth inspection

Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

Abrasion test

Adhesion strength test

Tensile strength test

Q1. Are you a manufactuer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What about the lead time?

1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel

Q3. How to pay?

1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

Q4. How about package?

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric

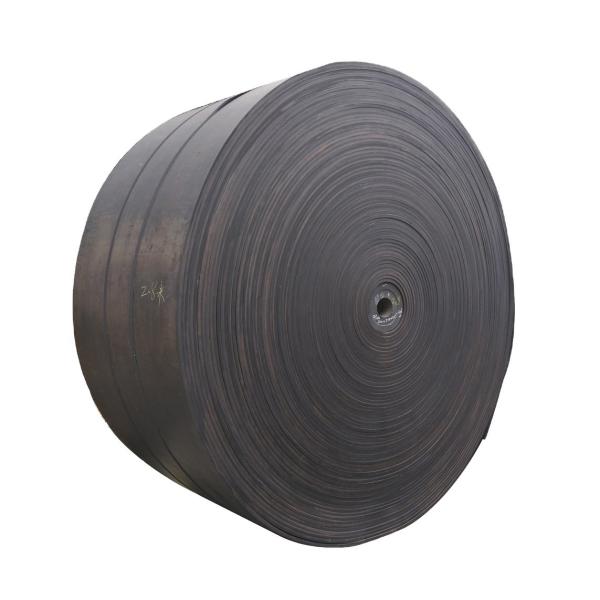

EP Conveyor Belts Strength N/mm 600/900/1200/1500 for Industrial Material Handling Images
